Our pressure gauges are designed to be attached to vessels, pipes or sight glass, sight flow indicator or liquid level gauge unit bodies, and offer precision accuracy.

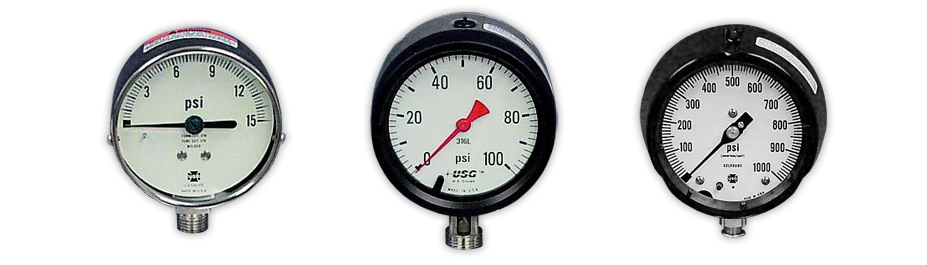

The following models are available:
Model 550: The Model 550 gauge can be used in dry or liquid process fluid environments. This unit mounts via a standard NPT connection.
| Model 550 Technical Details |
| Dial Sizes: |
2 1/2" or 4" |
| Connection: |
1/4" or 1/2" NPT-316 Stainless Steel or Brass |
| Accuracy: |
+/- 3-2-3 % of Span |
| Ranges: |
Vacuum 0-30" Hg Compound 30" Hg VAC through 150 psi Gauge 0-15 through 0-5000 psi |
Model 1900: The Model 1900 gauge can be used in dry or liquid process fluid environments. This unit mounts via a standard NPT connection available in a variety of metal materials.
| Model 1900 Technical Details |
| Dial Sizes: |
41/2" Diameter |
| Connection: |
1/2" NPT-316 Stainless Steel; Brass; Alloy Steel or Monel |
| Accuracy: |
Accuracy: +/- 0.5 % of Span |
| Ranges: |
Vacuum 0-30" Hg Compound 30" Hg VAC through 150 psi Gauge 0-15 through 0-5000 psi |
Model 100: The Model 100 gauge can be used in dry or liquid process fluid environments. This unit mounts via a standard stainless steel NPT connection.
| Model 100 Technical Details |
| Dial Sizes: |
4" Diameter |
| Connection: |
1/2" NPT-316 Stainless Steel |
| Accuracy: |
+/- 1 % of Span |
| Ranges: |
Vacuum 0-30" Hg Compound 30" Hg VAC through 150 psi Gauge 0-15 through 0-5000 psi |
