The

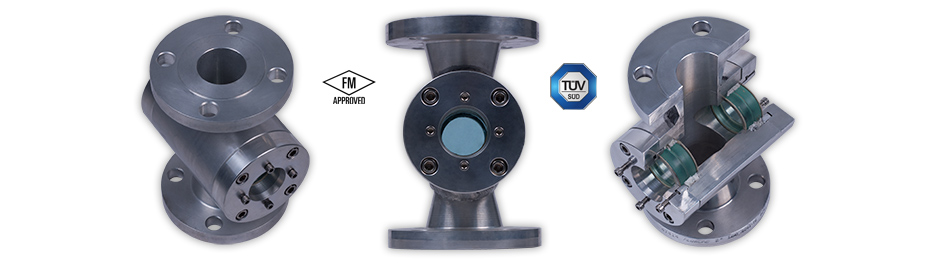

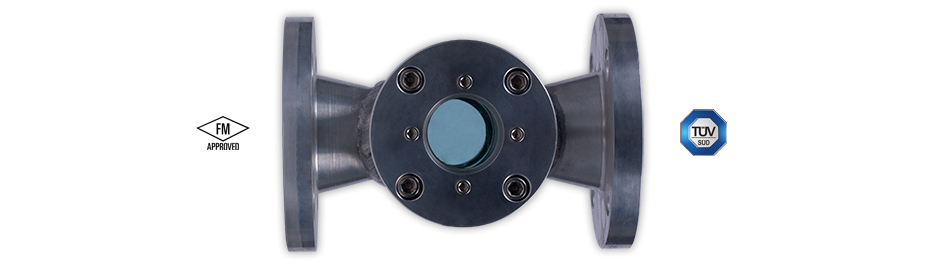

Model B SafeSite is an inline (see-thru) type of sight flow indicator assembly that allows the observation of material flow through a line. The unit is essentially two
Model B Weld sight glasses mounted at 180 degrees from one another on a specialized pipe fitting.
The Model B Safesite employs standard ANSI B16.5 (2" to 8") flange ends to specified face-to-face dimensions, and can be supplied with indicators such as drip tubes, rotors or flappers. The unit can be manufactured to meet your pressure and temperature requirements, and different materials of construction are available to meet your process needs. Other connections available include stub-ends with lap joint flanges, buttwelds, threaded connections, or sanitary connections. These units can be adapted to meet smaller or larger-size flange connections if necessary.
| Materials |
| Body: |
316 or 304 Stainless Steel SA- 351; Carbon Steel SA-519; Hastelloy; Alloy 20; Titanium; Aluminum; etc. |
| Retainer Caps: |
316 or 304 Stainless Steel SA-351; Carbon Steel SA 519 |
| Flanges: |
316 or 304 Stainless Steel SA-182; Carbon Steel SA-105; Hastelloy; Alloy 20; Titanium; Aluminum; etc. |
| Compression Rings: |
304 Stainless Steel SA-351; Carbon Steel SA-519 |
| Lens: |
Two-Piece Laminated Tempered Soda Lime (Standard); Tempered or Annealed Borosilicate; Quartz; Lexan; Acrylic; Mica Shields |
| Lens Cushion Gaskets: |
Teflon® (Standard); Grafoil®; Gylon®; Blue-Gard®; etc. |
| Lens Packing: |
Combination Teflon® Impregnated and Viton® (Standard); Graphite; FDA Teflon®; etc. |
| Compression Screws: |
18-8 Stainless Steel; Carbon Steel SA-193* |
| Retainer Cap Bolts: |
18-8 Stainless Steel; Carbon Steel SA-193* |
*By request only
This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
