Hinged Closure Sight Glass

Hinged Closure
jQuery Slider
Photo Gallery
View Hinged Closure Photos
Hinged Closure Photos
>
View Engineering Information
CAD Drawing

Click for larger view
Product Details

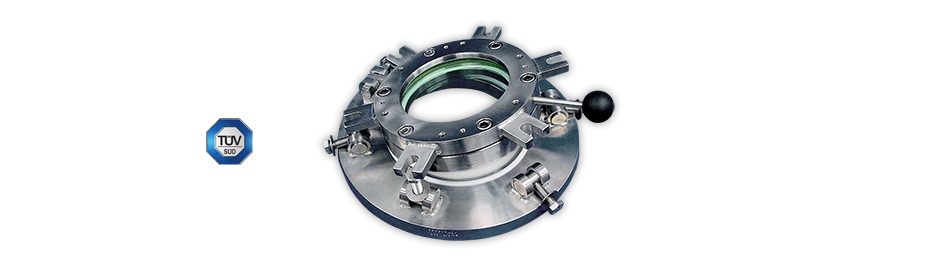

The Hinged Closure Sight Glass provides convenient access to the process without the need to fully disassemble and re-assemble a unit.

The hinged closure unit is designed for a weld pad or flange connection (ANSI, DIN, or special bolt pattern) and for mounting our Model B or Model L units (depending on pressure requirements) to be hinged and sealed on an O-ring or gasket. A variety of materials of construction are available to meet your process needs.

Materials
Flange: Refer to Model L Weld or Model B Weld Units (depending upon pressure)
Weld Pad or Flange: 316 or 304 Stainless Steel SA-240; Carbon Steel PVQ; Hastelloy; Monel; Alloy 20; Titanium; Aluminum; etc.
O-Ring or Gasket: Teflon®; Viton®; Silicone; EPDM; Graphite; Buna-N; etc.
Swing Bolt: 316 or 304 Stainless Steel; Carbon Steel
Hinge: 316 or 304 Stainless Steel; Carbon Stee

This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
