Model B Flange Sight Glass

Model B Flange
Model B Flange
jQuery Slider
LIVE 3D Model View
View Model B Flange in 3D
Model B Flange 3D View
>
Photo Gallery
View Model B Flange Photos
Model B Flange Photos
>
View Engineering Information
CAD Drawing

Click for larger view
Product Details

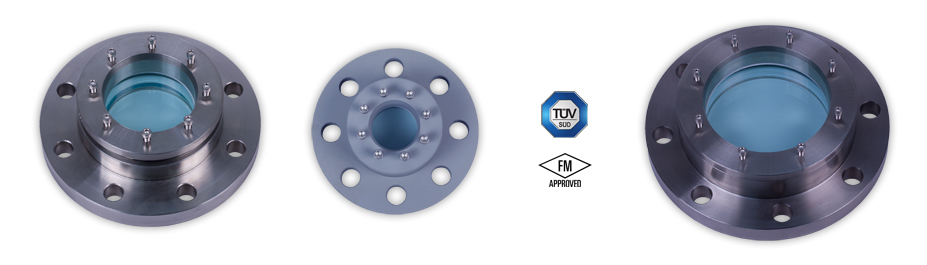

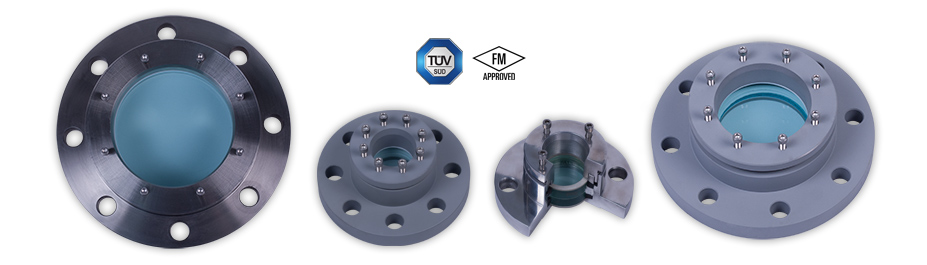

Safe, strong and low-maintenance are the hallmarks of the Model B Flange sight glass from Pressure Products.

The Model B Flange unit with threaded lens retainer cap mounts on standard ANSI B16.5 (2" to 24") flange accommodations. Units can be manufactured to meet your pressure and temperature requirements, and different materials of construction are available to meet your process needs. Applications requiring DIN standards or non-ANSI flanges are available upon request.

Materials
Flange: 316 or 304 Stainless Steel SA-182; Carbon Steel SA-105
Retainer Caps: 316 or 304 Stainless Steel SA-351; Carbon Steel SA-519
Compression Ring: 304 Stainless Steel SA-351; Carbon Steel SA-519
Lens: Two-Piece Laminated Tempered Soda Lime (Standard); Tempered or Annealed Borosilicate; Quartz; Lexan; Acrylic; Mica Shields
Lens Cushion Gaskets: Teflon®; Grafoil®; Gylon®; Blue-Gard®; etc.
Lens Packing: Combination Teflon® Impregnated and Viton® (Standard); Graphite; FDA Teflon®; etc.
Compression Screws: 18-8 Stainless Steel; Carbon Steel SA-193*

*By request only

This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
