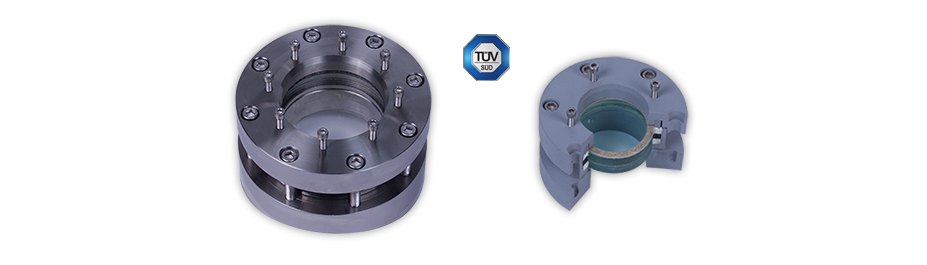

Model I Weld Sight Glass

Model I Weld
jQuery Slider
Photo Gallery
View Model I Weld Photos
Model I Weld Photos
>
View Engineering Information

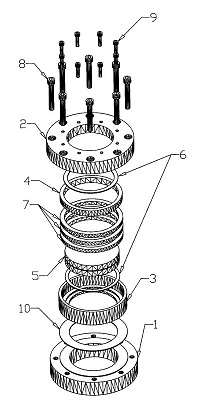

CAD Drawing

Click for larger view
Product Details
If corrosion resistance is only needed on wetted parts of a sight glass, our Model I Weld sight glass unit is an ideal choice for the application.

The Model I's insert can be made from a wide variety of materials (stainless steel, glass-lined, or Hastelloy, etc) to ensure compatibility with any process fluid, while the main unit body can be made of carbon steel (or any material your application requires). As with all PPC products, the Model I Weld can be made to meet any pressure and temperature requirements.

Materials
Weld Pad: 316 or 304 Stainless Steel SA-351 or SA-240; Carbon Steel PVQ; Hastelloy; Alloy 20; Titanium; Monel; etc.
Flange: 316 or 304 Stainless Steel SA-351; Carbon Steel SA-519 or PVQ
Insert: 316 or 304 Stainless Steel SA-351; Carbon Steel SA-519; Hastelloy; Alloy 20; Titanium; Monel; etc.
Compression Ring: 304 Stainless Steel SA-351; Carbon Steel SA-519
Lens: Two-Piece Laminated Tempered Soda Lime (Standard); Tempered or Annealed Borosilicate; Quartz; Lexan; Acrylic; Mica Shields
Lens Cushion Gaskets: Teflon®; Grafoil®; Gylon®; Blue-Gard®; etc.
Retainer Bolts: 18-8 Stainless Steel; Carbon Steel SA-193*
Lens Packing: Combination Teflon® Impregnated and Viton® (Standard); Graphite; FDA Teflon®; etc.
Compression Screws: 18-8 Stainless Steel; Carbon Steel SA-193*
Mating Gasket: Gylon®; Teflon®; Grafoil®; Blue-Gard®; etc.

*By request only

This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
