The

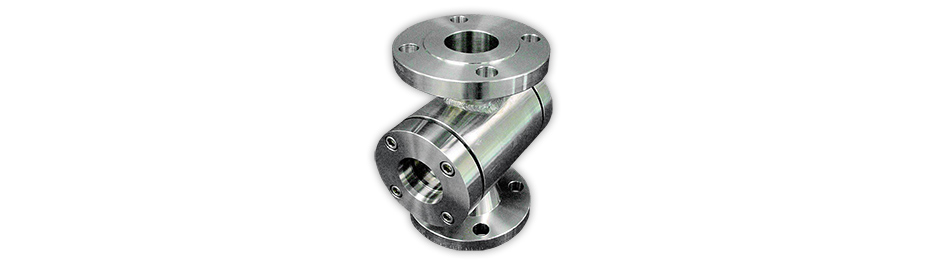

DuraPort Flanged See-Thru Sight Flow Indicator is an inline arrangement of two
DuraPort Weld-In units. The exceptional clarity of the DuraPort lenses will allow the user to easily distinguish flow in the line as well as color and/or opacity of the material.
This unit employs standard ANSI B16.5 Weld Neck Flange ends to specified face-to-face dimensions, and is available with a drip tube, flapper, or rotor to help distinguish flow in otherwise clear material. Other connection types are available upon request, including stub-end with lap joint flanges, butt-weld, threaded or sanitary. These units can be adapted to meet smaller or larger size flange connections if necessary, and other drillings such as DIN are available upon request.
Materials |
Ring: |
2205 Stainless Steel; 316 Stainless Steel; Hastelloy; Carbon Steel |
Glass: |
Borosilicate; Soda Lime |
Body and Connections: |
304 or 316 Stainless Steel; Carbon Steel; Hastelloy |
Covers: |
304 or 316 Stainless Steel, Carbon Steel; Hastelloy |
Gaskets |
Teflon; Grafoil; Gylon; JM-961; G9800; etc. |
Hardware: |
18-8 Stainless Steel; Carbon Steel |
This sight glass has been certified as maintaining a Quality Assurance System in accordance with the Pressure Equipment Directive 97/23/EC (PED) Annex I, Paragraph 4.3 by the Certification Body 0036 of the TÜV Industrie Service GmbH.
